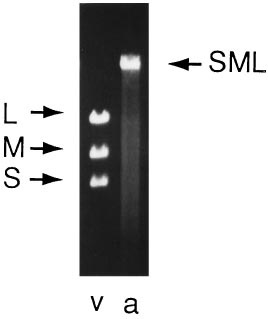

Figure 16-8: Agarose gel electrophoresis of dsRNA isolated from virions. Lane v shows the distribution of normal segments L, M and S. Lane a shows dsRNA from Phi2515, which contains the entire genome of Phi6 in one segment. The migration of the RNA indicates a size of about 14kbp.
